Vinyl cutting plotter

Graphtec CE6000-120 Vinyl Cutting Plotter

more info

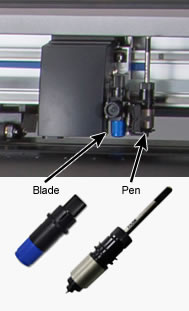

Dual tool configuration for cutting and plotting

It holds both a pen and a blade. The pen is for plotting and detailing graded patterns with seams, text, notches, grain direction, etc. The blade is to make the perforated cut of the pattern outline. The tool is automatically switched for cutting and plotting as needed, ensuring a high quality pattern and maximum productivity.

Reliable tracking

 The number of push rollers has been increased to five, with the three inner rollers having two pressure settings (low and normal) to prevent media lifting and suit a wider range of substrates. A media sheet guide is also included to reduce static and to improve long length tracking. These two new additions ensure a more stable media feed and higher productivity.

High adaptability to the operating environment



The design of the media feed system ensures that loaded media is acclimated to the ambient temperature and humidity before plotting or cutting. The user-selectable media pre-feed function sets two outer tracks, enhancing media handling. Together, these two media feed elements ensure reliable cutting and plotting quality within the desired operating environment.

Easy to use in simple operation mode

Two set up menus, Simple and Normal, are available and can be chosen by the operator as desired.

Simple mode Basic menus to ensure easy operation are displayed.

Normal Menus for setting of all functions are displayed.

Large LCD with multi-language support

Settings can be easily configured using the large LCD (3.7-inches, 240 x 128 dots) and tactile control panel. It is also icon driven and supports 10 languages. ( English, French, German, Italian, Portuguese, Spanish, Russian, Korean, Chinese(Simple), and Japanese )



Graphtec CE6000-60 Vinyl Cutting Plotter

more info

Reliable cutting quality
Intuitive operation and easy to use

Cutting plotter CE6000 series, Price Performance Leader

The CE6000 series sets the standard for high performance, low cost cutting plotters. It is equipped with professional-level features such as registration mark sensing and perforation cutting for producing a dividing line of labels or packaging mock-ups. The advanced features of the CE6000 series improve your work efficiency and increases productivity.

 Automatic paneling

Auto-paneling is a new feature that automatically splits long-length jobs into smaller pages that are cut sequentially but without any gaps. The result is a seamless, long-length finished job. Media movement is limited to the smaller page being cut, improving accuracy and tracking.

Supports perforation cutting

 Perforation cutting is performed by controlling the cutting force instead of blade up/down movements, increasing throughput. This is perfect for cutting separation lines for tearing out labels, fold lines for POP signs, and others.

Auto sensitivity adjustment

 The sensitivity of the registration mark sensor is automatically set by measuring the reflection level of the mark and the background of the actual media.

 The mark can be detected when the color of the mark has a reasonable contrast against the background. For example, a white mark can also be detected on a coloured background.

Easier to cut in simple operation mode

Two set up menus, Simple and Normal, are available and can be chosen by the operator as desired.

In the Simple operation mode, selecting the type of media also sets the necessary cutting conditions.

Simple mode: Basic menus to ensure easy operation are displayed.

Normal mode: Menus for setting of all the functions are displayed.

Cutting Master 3

This plug-in software sends the cutting object created by Illustrator or CorelDRAW to the plotter, and can also be used to control the plotter. It has a variety of features such as registration mark creation, matrix copy, tiling, weed settings, tool conditions, cut job settings, and others. It is easily to use and this enables you to get the best performance from your plotter.

< Main Features >

• Editing the position, expansion, and reduction directly within the preview window
• Creating an outline of the character, recognizing a line width and an overlap
• Output by a layer or color, and inserting a line for weeding (horizontal, vertical)
• Splits an object into small pieces by the tiling function
• Supports the connection and switching of multiple plotters.

Supported OS *: Windows 10/8.1/8/7/Vista, Mac OS 10.6 to 10.11

Supported software *: Adobe Illustrator CC2015.3/CC2015/CC2014/CC/CS6/CS5/CS4,

CorelDRAW Graphics Suite X8/X7/X6/X5/X4

* For more information about compatibility of the OS or application software, please contact your local representative of Graphtec.



Redsail RS720C Cutting Plotter Vinyl Sticker Cutter With Stand

more info

Redsail can provide Corel draw plug-in software (Cutmate 2.3). This unique software supports the work of vinyl cutter with Coreldraw 11, 12, X3, X4 and X5 cutting out. Redsail's vinyl cutters support Artcut, Flexi Sign, WinPCSIGN and other sign making software. Our cutting plotters are low cost and high performance sign making machines.

Advanced:

• Advanced rooler guide rail, running accurately, and adopts aluminum alloy feeding roll, easy to cut small letters, smooth mounts
• Maximum speed 600 mm/s, the speed of curve and line is the same
• 25-500 g adjustable blade pressure and blade soft-landing, however hard or thick the material is, it can cut or draw well
• Special interface software, can output from Coreldraw, Flexsign etc.
• USB and 232 serial port interface, more convenient
• Optional Red dot has contour cutitng function
• With CE and RoHs certificate, more reliable

Standard Accessories:

• User manual (CD)
• 1 RS232 serial cable and 1 USB cable
• 1 Power cable
• 3 Cutting blades
• 1 Blade holder
• 1 Pen holder
• 1 Coat for the plotter
• 1 Deluxe aluminum stand

Optional accessories:

• Software: WinPCsign, Artcut2009, Cutmate 2.3
• Red dot pointer has contour function
• Iron stand

Commercial conditions

Warranty: 12 months

Control system	Risc micro-controller
Drive type	Stepper motor
Media size	720 mm
Cutting size	620 mm
Cutting speed	25-600 mm/s (16 levels selectable)
Cutting force	25-500 g (38 levels selectable)
LCD display	English
Resolution	1000 dpi
Power supply	AC 110 V - AC 240 V / 50-60 Hz
